Fiber Optic Box Manufacturing Outdoor 8 Cores Gray Optical Terminal Access Box
Introduction:
8 cores FTTH fiber terminal cable access box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.
The entry 2ports can use multi-fibre cable maximum diameter 12mm. The output ports 8pcs
Meanwhile, the unique design of separate covers for the adapter and cable entry/exit ports makes it more safe, nice and humanity.

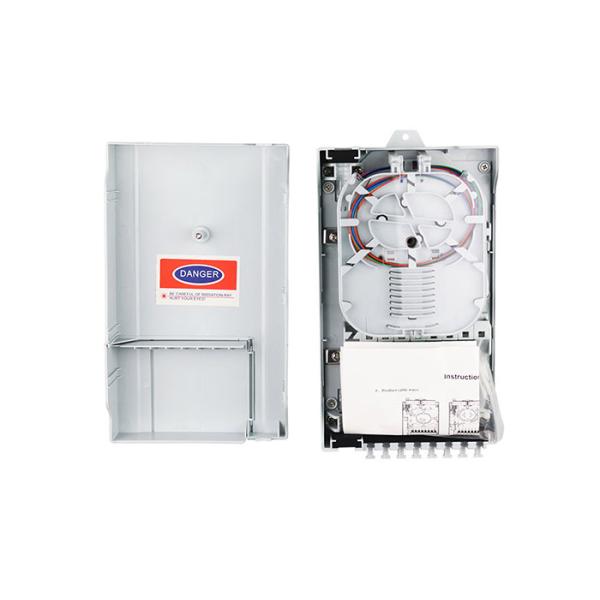

Product Show:
Feature:
• Water-proof design with IP65 Protection level
• Integrated with splice cassette and cable management system
• Manage fibers in a reasonable fiber radius condition
• Easy to maintain and extend the capacity
• Fiber bend radius control more than 40mm
• Suitable for the fusion splice or mechanical splice
• 8 ports cable entrance for FTTH drop cable
Application:
•Widely used in FTTH access network.
•Telecommunication Networks
•CATV Networks
•Data communications Networks
•Local Area Networks
Specification:
| Product name | Fiber Optic Terminal Box |
| Color | Gray |
| Model | FDMS-WS/ADT-8ZT |
| Cable Ports | 2inlet 8outlet |
| Cable diameter | In:10mm out: 5mm |
| Installation | Wall mount |
| Max. Fusion | 16 fibers |
| Material | ABS+PC |
| PLC Splitter | 1x2,1x4,1x8 mini splitter |
| Max. Adapter | 8pcs SC simplex without flange |
Our Service:
1. OEM Manufacturing welcome: Product, Package...
2. Offer free sample for testing
3. Reply inquiry within 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer
the solve solution for you.
