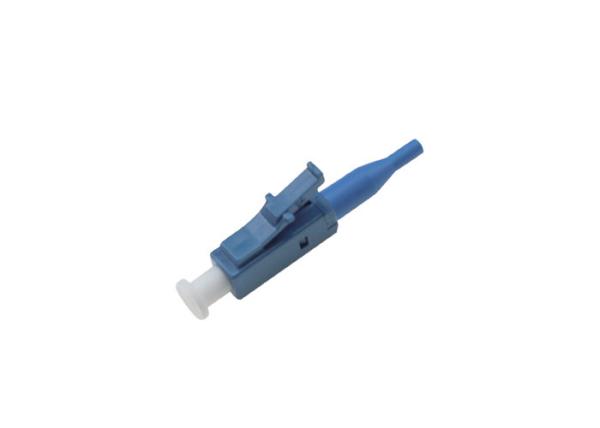

LC UPC 0.9mm SX Connector Fiber optical patch cord with short boot

Name: LC UPC 09mm SX Connector Fiber optical patch cord with short boot
Brand: Yogel
Price: 1 USD

China LC UPC 0.9mm SX Connector Fiber optical patch cord with short boot wholesale

Brand Name : Yogel

Model Number : LC 0.9mm SX

Certification : ISO9000

Place of Origin : Shanghai

MOQ : 1

Price : Negotiate

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 10000 pcs/ month

Delivery Time : 3-5 days after despoit

Packaging Details : 1 piece/inner bag, 100pcs/pack

Product name : LC UPC 0.9mm SX Connector Fiber optical patch cord with short boot

Test wavelength : 1310/1550nm

Insertion loss : Typ. ≤0.15 dB, Max. ≤0.30 dB

Return Loss : ≥50 dB

Contact Now

LC UPC 0.9mm SX Connector Fiber optical patch cord with short boot

Description:

Simplex cable assemblies are offered with a variety of combinations. Connectors include SC, FC, ST and LC. 3.0 mm, 2.0 mm, 1.6 mm, 1.2mm and 900μm simplex cables in PVC, OFNR, LSZH, OFNP jackets and G.652D, G. 657A2 fiber types are available.

Features:

1).Low Insertion loss

2).High return loss

3).Good Repeatability

4).Good Interchange

5).Excellent Environmental Adaptability

Application:

1. Optic communication system

2. FTTH

3. LAN

4. CATV, EDFA equipment

5. Test instrument

6. Fiber optic sensor

Specifications:

Item	Parameter
	Single Mode			Multi-Mode
	PC	UPC	APC	PC
Test wavelength	1310/1550nm			850/1300nm
Insertion loss	Typ. ≤0.15 dB, Max. ≤0.30 dB
Return Loss	≥45 dB	≥50 dB	≥60 dB	≥35dB
Repeatability	≤0.10 dB
Changeability	≤0.20 dB
Durability (1000 Mating)	≤0.20 dB
Operation temperature	-40 ~ +80℃
Storage temperature	-40 ~ +85℃
Connector end	SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cable jacket	PVC, OFNR, LSZH, OFNP
Cable diameter	3.0mm, 2.0mm, 1.6mm, 1.2mm, 0.9mm
Fiber count	Simplex
Fiber type	Single Mode: G. 652D, G. 655, G. 657A2, etc. Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125)
Cable length	0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc.
Fiber brand	Corning, Sumitomo, Fujikura, YOFC, TFO
Fire resistant	IEC 60794-2-30
Standards Compliant	ROHS, IEC, GR-326

Order information:

Connector End A - Connector End B,

Cable Jacket, Cable Diameter, Fiber Count, Fiber Type, Cable length

LC UPC 0.9mm SX Connector Fiber optical patch cord with short boot

*Connector End A *Connector End B *Jacket Cable *Cable Diameter *Fiber Count

ASC = Aangle SC ASC = Aangle SC V = PVC S = 3.0 mm 001 = 1

AFC = Aangle FC AFC = Aangle FC L = LSZH T = 2.0 mm 002 = 2

ALC = Aangle LC ALC = Aangle LC R = OFNR M = 1.6 mm

USC = Ultra SC USC = Ultra SC P = OFNP J = 0.9mm

UFC = Ultra FC UFC = Ultra FC E = PE

UST = Ultra ST UST = Ultra ST U = TPU

ULC = Ultra LC ULC = Ultra LC

XXX = NC

*Fiber Type *Multimode *Cable Length

S1= OS1 PSC = SC MM 0050=0.5M

0050 = 0.5M PFC = FC MM

S2= G.652D PLC = LC MM

S3= G.657A1 PST = SC MM

S4= G.657A2

M1= OM1

M2 = OM2

M3 = OM3

M4 = OM4

M5 = OM5
